Air quality is important for productivity, safety, and achieving optimum settings on ventilation and fresh air entry in HVAC control systems. The Lutron LU-AQ9901SD is an economical solution for determining base conditions and the effects of changes in control settings. Accuracy is sufficient for this purpose and the kit is supplied with sensors and carry case – just add an SD card up to 16 GB capacity. Data is transferred to a PC on the SD card and can be analysed directly using a standard spreadsheet program. The air quality meter is one of the new familyw of environmental instruments using SD card logging including LUX, sound level, heat stress index, 3 phase power, and atmospheric pressure.
- 0-4000ppm CO2 NDIR
- 0-1000ppm CO Galvanic cell sensor
- 0-30% Oxygen Galvanic cell sensor
- 10-95% RH — -25 to 48C
- dewpoint *0-50C
- ALARMS with beeper
- Record information 2 sec to 8 hours – data to SD card (card is an optional extra)
- Transfer to PC with spreadsheet analysis (or USB download and optional PC software)

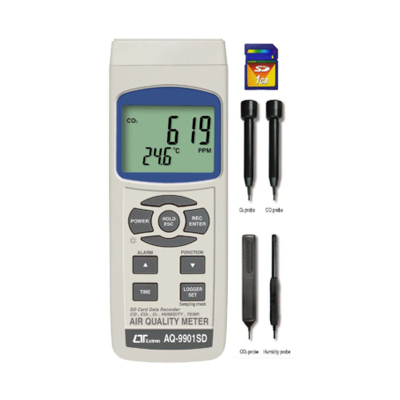

- Comes as a kit with all probes and carry case
Optional accessories:
- LU-SD-2GB : 2 GB SD card
- LU-POWER-9V: DC 9V Power adapter with input voltage: 100 to 240VAC
- LU-SWU801-WIN: Data acquisition software
